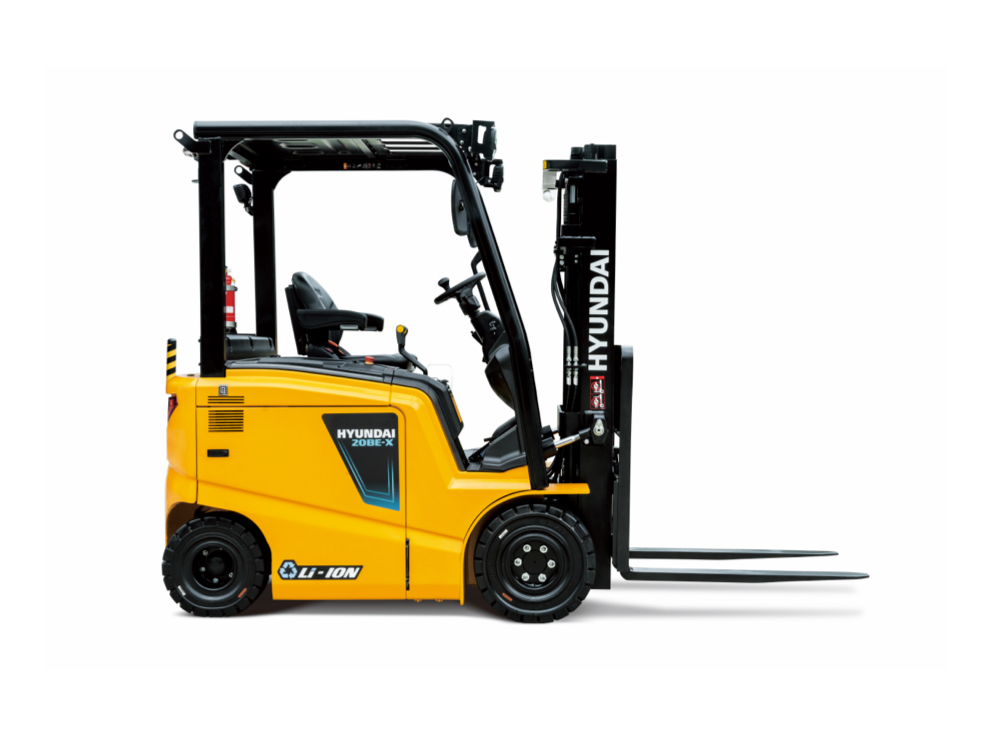

Hyundai 20BE-X

Hyundai 20BE-X

New Forklifts

Hyundai 20BE-X

12512252

Specifications

Model
20BE-X
Type
4-Wheel Counterbalance
Fuel
Electric Forklifts
Capacity
2000
Max. Lift Height
6 M
Download brochure

Product description

The new 16BE-X and 20BE-X Series battery-powered electric forklifts are 1.6-tonne and 2-tonne machines that are high on productivity, comfort and safety.

get a quote
View Datasheet

Product features

Comfort

  • A multifunctional digital cluster allows operators to check operating information in real time for safe and convenient equipment management.
  • The MCV lever is conveniently placed to the right of the operator to reduce movement and fatigue compared with the dashboard-fixed type.
  • Full-suspension Grammer seat has a seat belt switch, arm rests and an adjustable cushion to match the weight of the operator.
  • A higher seat height for better visibility and lower placed steps compared with conventional types for easy access.
  • Hydraulic boosted-type steering wheel has been reduced by 20mm for extra convenience and the wheel column can be tilted 12.5 degrees forwards or backwards to suit the operator.

Safety

  • Anti-Roll back system prevents the forklift from rolling down a slope when the accelerator and brake pedal are not applied.
  • Operator Presence Sensing System (OPSS) restricts driving when the operator leaves their seat in order to prevent accidents.
  • A maximum travel speed can be set to meet the safety speed of the site. There is also a 3 km/h travel speed limiter when driving with elevated load option.
  • Front and rear wireless cameras help with the safe positioning of pallets during high-rack operation.
  • Rear grip with embedded horn allows the driver to stay comfortable during reverse driving and operate the horn quickly in case of an emergency.
  • Front and rear LED working lights and optional beacon lamp, blue spots and red zone lamps indicate movement for the benefit of surrounding workers.

Productivity

  • Energy efficiency has been improved by 8.2% compared with the 9F Series thanks to more efficient drive and axle assemblies.
  • A single-drive axle system, IP 54 motors and 48V batteries allows the machines to be used outdoors for greater convenience.
  • Batteries are placed between the front wheels and rear wheels to lower the body’s centre of gravity, providing greater driving and lifting stability.
  • Easy selection of driving and mast work speeds to match work conditions, with the use of up/down buttons in the cluster.
  • Optional quick charging, longer lasting lithium-ion batteries allow extended hours of continued operation on a single charge.
  • For improved controller system reliability that meets EU safety regulations, a waterproof and dust-proof IP65 large-capacity ZAPI Controller is installed.

Low Cost

  • Quick battery replacement from the side using a pallet truck, rather than expensive equipment like a crane.
  • Convenient battery charging by connecting a charger connector to a charging port, without the separation of battery cables connected to the frame.
  • Efficient hydraulic motor cooling system.
  • Safety warning sound and lamp indicator for low brake oil level, battery discharge, and high temperature in the controller and motor.
  • Waterproof and dustproof key switch increases the reliability of the electric/electronic system.
  • Sealed micro switches are used in the hydraulic control lever system, keeping it protected from outdoor dust and water for greater reliability.
